Annotations is one of the key features supported by new Box View, that allows developers to provide collaboration capabilities right from within the embedded Box preview in their application.

Box View supports three annotation types: highlight only, highlight annotation, and point annotation. Annotations are only supported on document and image previews.

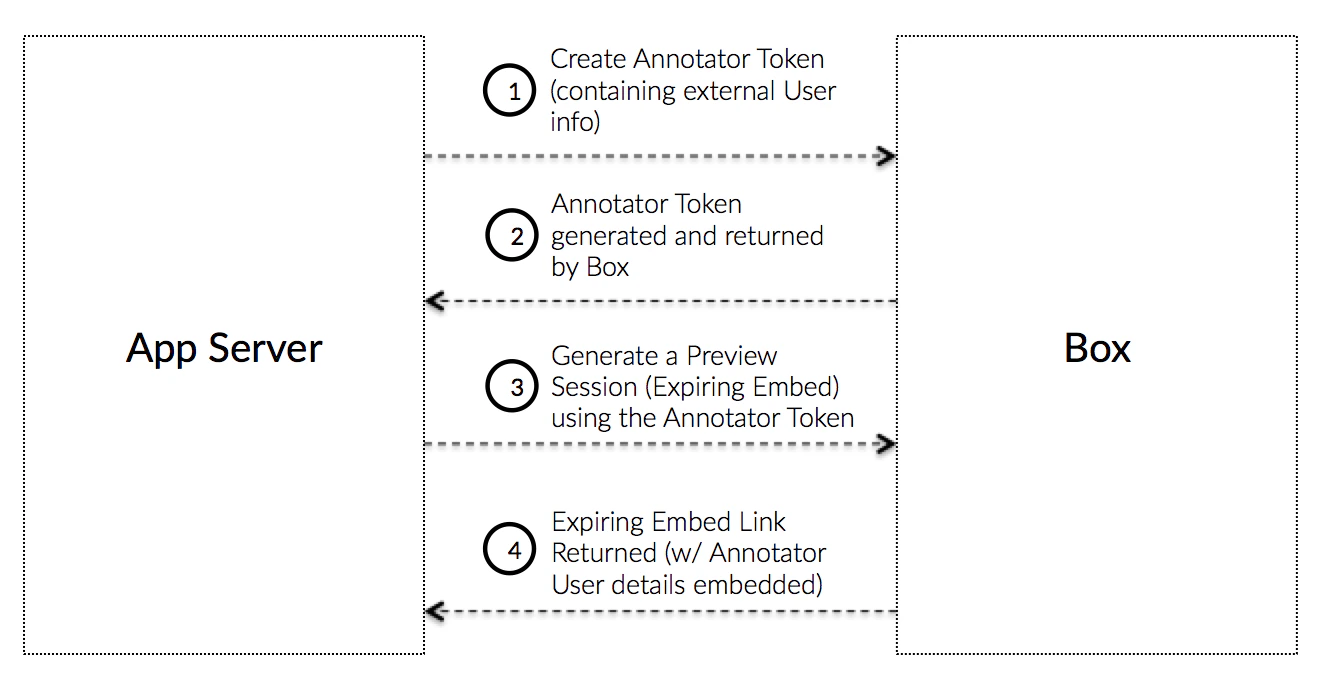

An Annotator Token is an Access Token that allows an application to create a Preview Embed Link for a file that a user can make annotations on. As an application might not create a new App User for every one of the application's users, the Annotator token allows the application to track which of their own users made the annotations.

The Annotator Token is used instead of a regular Access Token, App Token, or File Token to generate a preview session (an expiring embed link) that is linked to a unique user ID and display name.

Since a preview session generated using an annotator token is tied to a specific external user, it is strongly recommended that an application generates different preview sessions using different annotator tokens for different end users of an application.

The external display name associated with an annotation is essentially a stateless "label" appended to the annotation. This means that once an annotation has been added, the display name is permanently associated with the annotation and cannot be updated unless the annotation is deleted and added again with the updated display name.

To create an annotator token, follow the instructions for manually authenticating through JWT but replace the JWT claim with the following data.

.Net

var claims = new List<Claim>{
    new Claim("sub", '[EXTERNAL_USER_ID]'),
    new Claim("name", '[EXTERNAL_USER_DISPLAY_NAME]'),
    new Claim("box_sub_type", "external"),
    new Claim("jti", jti),
};

Java

JwtClaims claims = new JwtClaims();
claims.setIssuer(config.boxAppSettings.clientID);
claims.setAudience(authenticationUrl);
claims.setSubject("[EXTERNAL_USER_ID]");
claims.setName("[EXTERNAL_USER_DISPLAY_NAME]");
claims.setClaim("box_sub_type", "external");
claims.setGeneratedJwtId(64);
claims.setExpirationTimeMinutesInTheFuture(0.75f);

Python

claims = {
    'iss': config['boxAppSettings']['clientID'],
    'sub': '[EXTERNAL_USER_ID]',
    'name': '[EXTERNAL_USER_DISPLAY_NAME]',
    'box_sub_type': 'external',
    'aud': authentication_url,
    'jti': secrets.token_hex(64),
    'exp': round(time.time()) + 45
}

Node

let claims = {
    iss: config.boxAppSettings.clientID,
    sub: "[EXTERNAL_USER_ID]",
    name: "[EXTERNAL_USER_DISPLAY_NAME]",
    box_sub_type: "external",
    aud: authenticationUrl,
    jti: crypto.randomBytes(64).toString("hex"),
    exp: Math.floor(Date.now() / 1000) + 45
};

Ruby

claims = {
  iss: config['boxAppSettings']['clientID'],
  sub: "[EXTERNAL_USER_ID]",
  name: "[EXTERNAL_USER_DISPLAY_NAME]",
  box_sub_type: 'external',
  aud: authentication_url,
  jti: SecureRandom.hex(64),
  exp: Time.now.to_i + 45
}

PHP

$claims = [
  'iss' => $config->boxAppSettings->clientID,
  'sub' => '[EXTERNAL_USER_ID]',
  'name' => '[EXTERNAL_USER_DISPLAY_NAME]',
  'box_sub_type' => 'external',
  'aud' => $authenticationUrl,
  'jti' => base64_encode(random_bytes(64)),
  'exp' => time() + 45,
  'kid' => $config->boxAppSettings->appAuth->publicKeyID
];

Parameter	Type	Description
`sub`	String	The external user ID to tie this annotation to. This can be any arbitrary ID tracked by the application
`box_sub_type`	String	`external` to signify an external user ID
`box_sub_type`	String	The external user name to tie this annotation to. This will be displayed in the Box UI

Then, convert this claim to an assertion according to the guide and pass this assertion to the POST /oauth2/token endpoint together with an existing valid Access Token, App Token, or File Token, as well as a set of scopes, and the resource for which to create the token.

.Net

var content = new FormUrlEncodedContent(new[]
{
    new KeyValuePair<string, string>(
        "grant_type", "urn:ietf:params:oauth:grant-type:token-exchange"),
    new KeyValuePair<string, string>(
        "resource", "https://api.box.com/2.0/files/123456"),
    new KeyValuePair<string, string>(
        "subject_token", "[ACCESS_TOKEN]"),
    new KeyValuePair<string, string>(
        "subject_token_type", "urn:ietf:params:oauth:token-type:access_token"),
    new KeyValuePair<string, string>(
        "scope", "item_preview"),
    new KeyValuePair<string, string>(
        "actor_token", "[JWT_ASSERTION_FOR_ANNOTATOR_TOKEN]"),
    new KeyValuePair<string, string>(
        "actor_token_type", "urn:ietf:params:oauth:token-type:id_token"),
});

Java

List<NameValuePair> params = new ArrayList<NameValuePair>();

params.add(new BasicNameValuePair(
    "grant_type", "urn:ietf:params:oauth:grant-type:token-exchange"));
params.add(new BasicNameValuePair(
    "resource", "https://api.box.com/2.0/files/123456"));
params.add(new BasicNameValuePair(
    "subject_token", "[ACCESS_TOKEN]"));
params.add(new BasicNameValuePair(
    "subject_token_type", "urn:ietf:params:oauth:token-type:access_token"));
params.add(new BasicNameValuePair(
    "scope", "item_preview"));
params.add(new BasicNameValuePair(
    "actor_token", "[JWT_ASSERTION_FOR_ANNOTATOR_TOKEN]"));
params.add(new BasicNameValuePair(
    "actor_token_type", "urn:ietf:params:oauth:token-type:id_token"));

Python

params = urlencode({
    'grant_type': 'urn:ietf:params:oauth:grant-type:token-exchange',
    'resource': 'https://api.box.com/2.0/files/123456',
    'subject_token': '[ACCESS_TOKEN]',
    'subject_token_type': 'urn:ietf:params:oauth:token-type:access_token',
    'scope': 'item_preview',
    'actor_token': '[JWT_ASSERTION_FOR_ANNOTATOR_TOKEN]',
    'actor_token_type': 'urn:ietf:params:oauth:token-type:id_token'
}).encode()

Node

let accessToken = await axios
    .post(
        authenticationUrl,
        querystring.stringify({
            grant_type: "urn:ietf:params:oauth:grant-type:token-exchange",
            resource: "https://api.box.com/2.0/files/123456",
            subject_token: "[ACCESS_TOKEN]",
            subject_token_type: "urn:ietf:params:oauth:token-type:access_token",
            scope: "item_preview",
            actor_token: "[JWT_ASSERTION_FOR_ANNOTATOR_TOKEN]",
            actor_token_type: "urn:ietf:params:oauth:token-type:id_token"
        })
    )
    .then(response => response.data.access_token);

Ruby

params = URI.encode_www_form({
  grant_type: 'urn:ietf:params:oauth:grant-type:token-exchange',
  resource: 'https://api.box.com/2.0/files/123456',
  subject_token: '[ACCESS_TOKEN]',
  subject_token_type: 'urn:ietf:params:oauth:token-type:access_token',
  scope: 'item_preview',
  actor_token: '[JWT_ASSERTION_FOR_ANNOTATOR_TOKEN]',
  actor_token_type: 'urn:ietf:params:oauth:token-type:id_token'
})

PHP

$params = [
  'grant_type' => 'urn:ietf:params:oauth:grant-type:token-exchange',
  'resource' => 'https://api.box.com/2.0/files/123456',
  'subject_token' => '[ACCESS_TOKEN]',
  'subject_token_type' => 'urn:ietf:params:oauth:token-type:access_token',
  'scope' => 'item_preview',
  'actor_token' => '[JWT_ASSERTION_FOR_ANNOTATOR_TOKEN]',
  'actor_token_type' => 'urn:ietf:params:oauth:token-type:id_token'
];

Parameter	Description
`resource`	An optional full URL path to the file the token should be restricted to.
`actor_token`	The JWT assertion created earlier
`actor_token_type`	Always set to `urn:ietf:params:oauth:token-type:id_token`

To create a JWT annotator token with an SDK an application can exchange any active token for another token.

Node

var options = {
    actor: {
        id: "[EXTERNAL_USER_ID]",
        name: "[EXTERNAL_USER_DISPLAY_NAME"
    }
};

client
    .exchangeToken(
        "item_preview",
        "https://api.box.com/2.0/files/123456",
        options
    )
    .then(tokenInfo => {
        //=> tokenInfo.accessToken
    });
